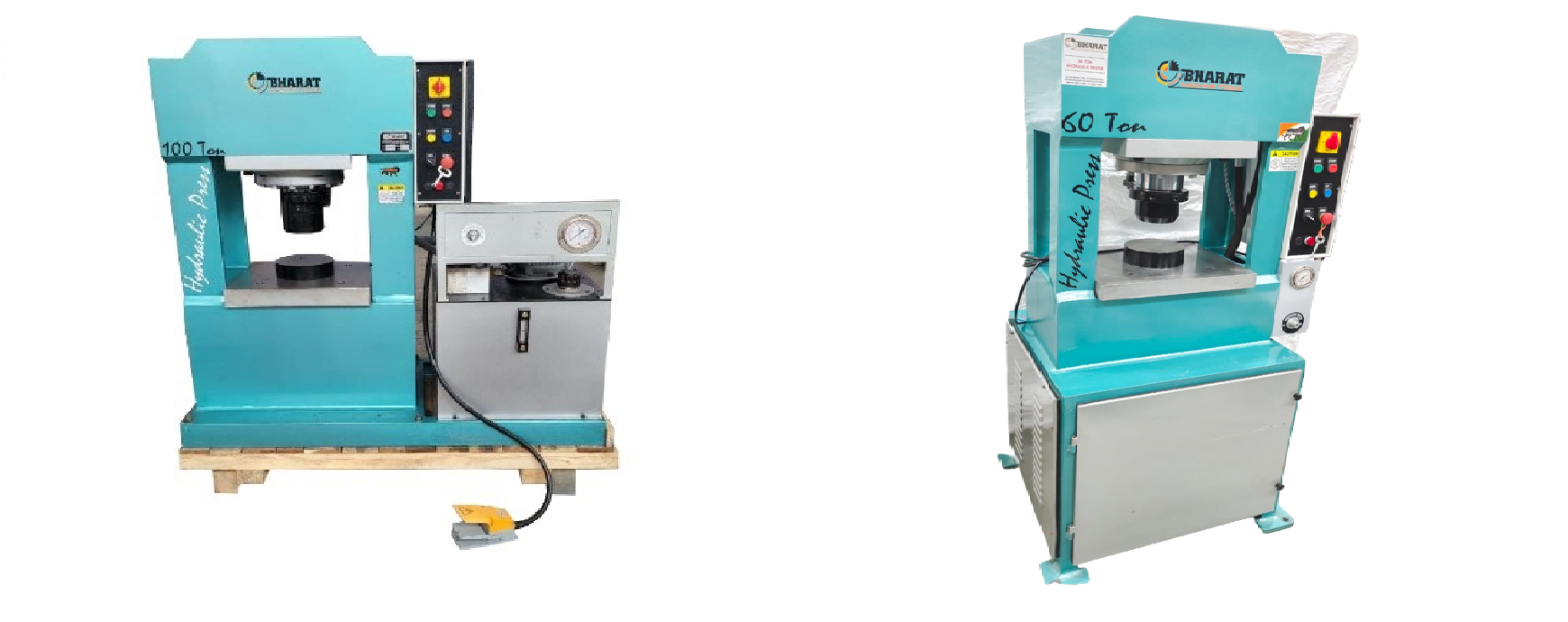

SEMI AUTOMATIC HYDRAULIC PRESSES(60,80,100,150 TON)

Machine specification:

Get Quotation

We offer a wide variety of auto/manual heavy-duty series used in production of gold or silver coins & bars up to 1 kg. This machine is designed to allow for precise shaping and stamping of coins & bars ,resulting in high quality finish that meets the highest standards of quality and precision.

FEATURES

PLC Control Panel
High embossing forces
High stroke and fast production
Multiple strokes with variable force and die lifting
High/low pressure system having an indicator

Manual hydraulic presses available sizes and technical details

Model	BMT 30	BMT 31	BMT 32	BMT 33
Capacity	60 ton	80 ton	100 ton	150 ton
Cylinder	110 mm	120 mm	150 mm	220 mm
Cylinder Stroke work	110 mm	120 mm	125 mm	185 mm
Working weight	800 kg	950 kg	1100 kg	1800 kg
Oil capacity	50 ltr	65 ltr	110 ltr	140 ltr
Power supply	3 HP/3 phase	5 HP/3 HP	3 HP/3 HP	5 HP/3 HP
Machine Net Weight	780 kg	1500 kg	1200 kg	1500 kg

These are just sample designs. Any type of cutting of any design can be done on any metal sheet.
