Step1: Heating the Gold Bar into Melting Furnace

Step2: Rolling the Strip into Jewellery Rolling Machine

Step3: Cutting the Accurate width strip in strip cutter machine

Step4: Passing the accurate width strip cut through pipe soldering machine.

Step5: Decrease the diameter of pipe made in pipe soldering machine through Draw Bench

Step6: Cutting the accurate Pipe in Bharat Pipe Cutter Machine

Step7: Doing threading inside pipe through jewellery pipe threading machine

PIPE AND THREADING MACHINE ENTIRE SETUP

MELTING FURNACE

Dimension in mm(Model)	BMT 59	BMT 60
Capacity	1 kg	2 kg
Temperature control	0-1200	0-1200
Display	Dual	Dual
Power Consumption	950 Watt	1200 Watt
Input power	220 volt	220 volt
Machine dimension in cm	37x21x30	53x43x78
Machine Net weight	15.0 kg	20.00 kg

INDUCTION MELTING FURNACE

Model	BMT 72
Capacity	1-20 kg
Melting time	2-5 min
Max Temp	1200
Cooling Water Temp	20-30
Machine dimension in cm	97x60x62
Machine Net weight	80+45 kg

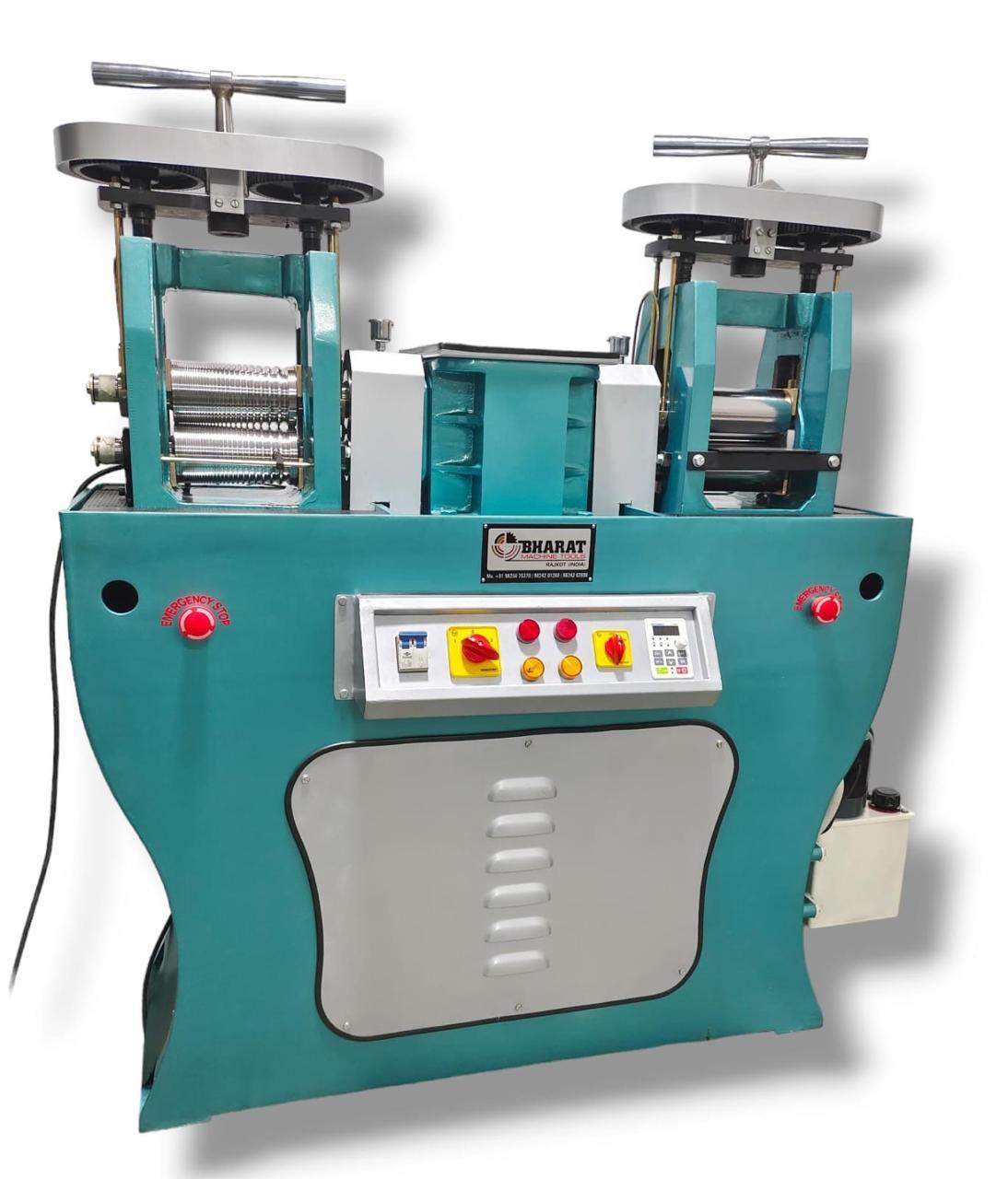

DOUBLE HEAD ROLLING MACHINE

Dimension in mm(Model)	BMT 1	BMT 2	BMT 3	BMT 4
Rolls width x Diameter	101x57/4'' x 2.25''	127x63.5/5'' x 2.5''	152z76/6'' x 3''	152 x 101 / 6'' x 4''
Wire grooves from to	8-0.75	9-0.75	10-0.75	12-0.75
Max sheet width can be rolled	80	80	100	100
Max Aperture of rolls	25	31	35	38
Power Supply	1 hp/0.75 kw 1 phase	1.5 hp/1.1 kw 1 phase	2 hp/1.5 kw 1 phase	5 hp/3.75 kw 3 phase
Depth per rotation of staring	0.78	0.5	0.66	0.99
Machine Dimension in cm	85x34x117	97x42x125	107x51x132	140x55x150
Machine Net weight	210.00	350.00	455.00	600.00

MOTORIZED STRIP CUTTER MACHINE

Model	BMT 38
Cutting width	3mm - 30 mm
Machine dimension in cm	75x70x140
Machine Net weight	140 kg
Power Supply	1 hp DC Drive/1 phase

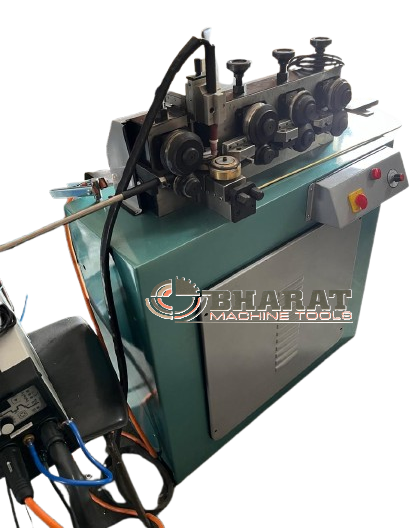

JEWELLERY PIPE SOLDERING MACHINE

Model	BMT 36
Pipe Dimension	4-14 mm
Soldering type	Italian argon soldering
Power supply	1 hp/0.75 kw DC Drive
Machine dimension in cm	70x45x100
Machine Net weight	165 kg

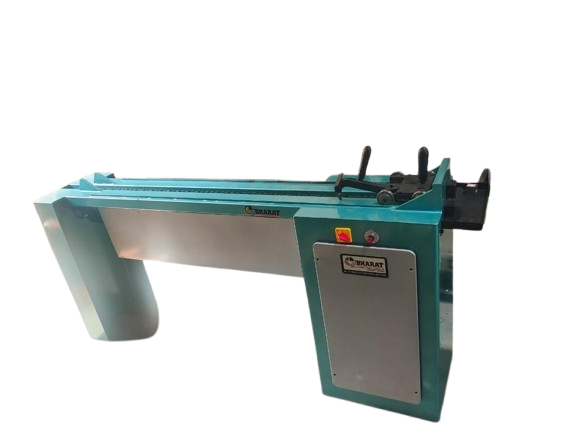

MOTORIZED DRAW BENCH

Model	BMT 100
Size	6 feet,8 feet,10 feet
Motor	2 HP AC/DC
Gearbox	Heavy
Machine Net weight	350 kg

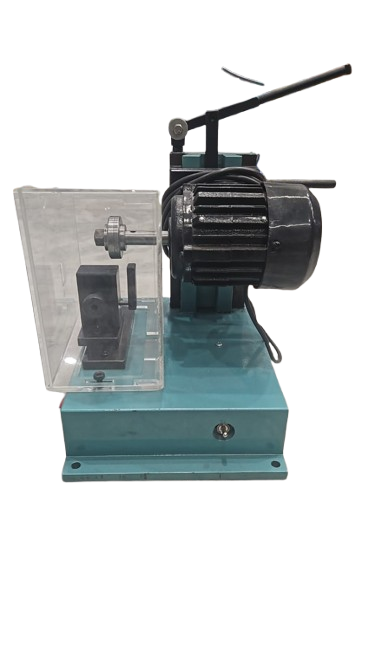

MOTORIZED PIPE CUTTER

Model	BMT 100
Size	Pipe of any diameter
Cutter	Steel blade cutter available from Bharat Goldsmith Tools
Motor
Usage	To cut pipe accurately into small piecs
Machine Net weight	50 kg

ALL THREADING MACHINERY

JEWELLERY PIPE THREADING MACHINE

Pipe diameter range	0.8 to 1.6
Motory	Magnetic sensor motor 0.8 Hp
Power supply	220V Single phase or 3 phase (Both Possible)
Threading location	Inside hollow pipe
Threading direction	Both reverse and forward
Pitch decider	Tap or needle
Threading pitch	0.25 mm,0.3 mm,0.4, 0.6 mm,0.7 mm (Regular)
Pipe material	Gold,Silver,Brass
Threading time per piece	3-4 seconds
Application	South screw(kan bali)

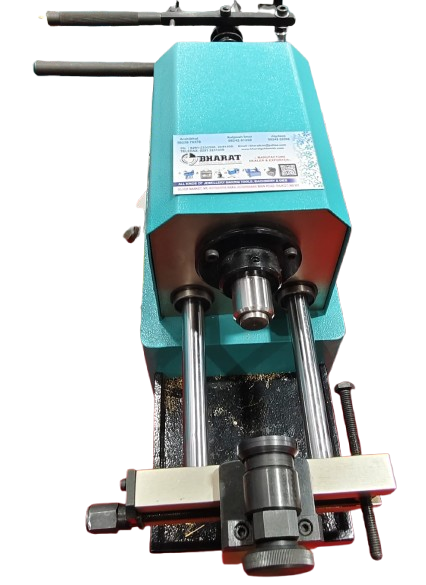

JEWELLERY OUTSIDE HALF THREADING MACHINE

Tar diameter range	Varied according to die
Motory	Magnetic sensor motor 0.8 Hp
Power supply	220V Single phase or 3 phase (Both Possible)
Threading location	Outside on tar (half threading)
Threading direction	Both reverse and forward
Pitch decider	Threading Dye
Threading pitch	0.25 mm,0.3 mm,0.4, 0.6 mm,0.7 mm (Regular)
Pipe material	Gold,Silver,Brass
Threading time per piece	3-4 seconds
Application	Bombay screw(kan bali)

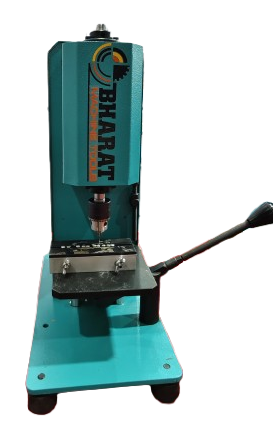

JEWELLERY CHAKI THREADING MACHINE

Chaki diameter range	Varied according to Tap
Motory	Magnetic sensor motor 0.8 Hp
Power supply	220V Single phase or 3 phase (Both Possible)
Threading location	Inside the hole of chaki
Threading direction	Both reverse and forward
Pitch decider	Tap
Threading pitch	0.25 mm,0.3 mm,0.4, 0.6 mm,0.7 mm (Regular)
Pipe material	Gold,Silver,Brass
Threading time per piece	3-4 seconds
Application	Bombay and south screw
