MACHINE FEATURES
JEWELLERY LASER MARKING MACHINE
Machine specification:
Bharat Machine Tools Jewellery laser marking machine is used to do marking design on gold and silver sheets and bangles.It comes equipped with a software called EZCAD in which any jewellery design can be done. Same jewellery design will be produced by Machine through laser on sheet or bangle. Jewellery Marking machines comes in 20 Watts and 40 Watts Power capacity. To do more darker design, we need to increase power and decrease speed.To do design on bangles, we need a rotary which is connected to laser machine and rotates at fixed angles according to instructions given in EZCAD software. Other technical details are given in technical detail secton. For further details and learning about the machine, please contact us on whatsapp or through email.
| Model | BMT 76 | BMT 77 |
|---|---|---|
| Output Power | 20 W | 30 W |
| Laser Type | Pulsed Fiber Laser | Pulsed Fiber Laser |
| Wavelength | 1064 mm | 1064 mm |
| Power adjusting range | 1 ~ 100% | 1 ~ 100% |
| Beam Diameter | 6-9 mm | 6-9 mm |
| Beam Quality | 20-80 Khz | 20-80 Khz |
| Max. Linear Speed | 12000 mm/s | 12000 mm/s |
| Marking Depth | 0.01 ~ 0.3 mm | 0.01 ~ 0.5 mm |
| Marking Area | 70 mm/100 mm | 100 mm/110 mm |
| Working Table | 450mm X 450mm | 450mm X 450mm |

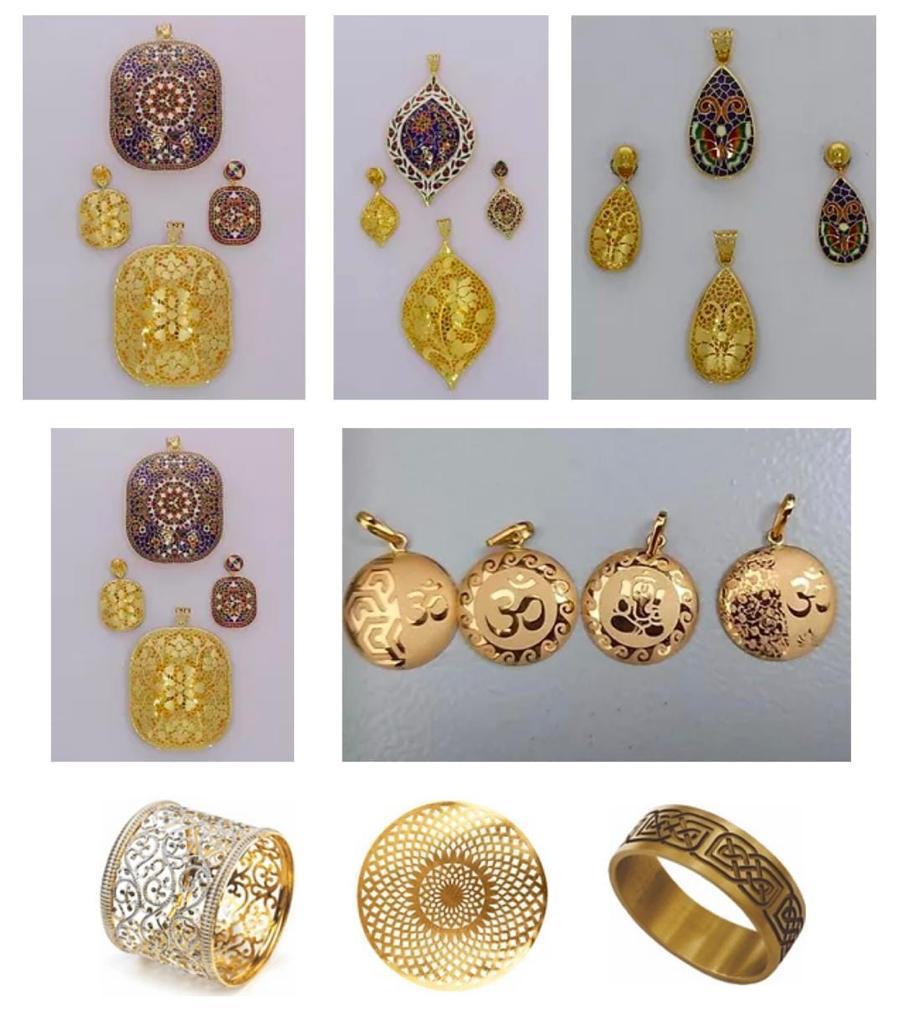

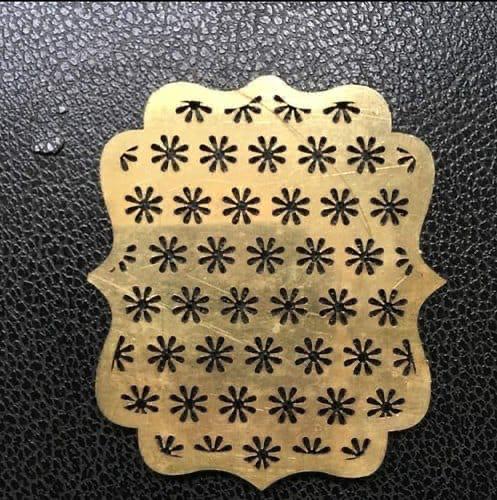

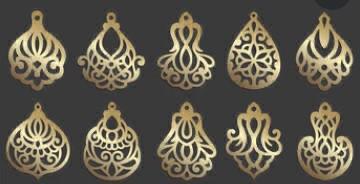

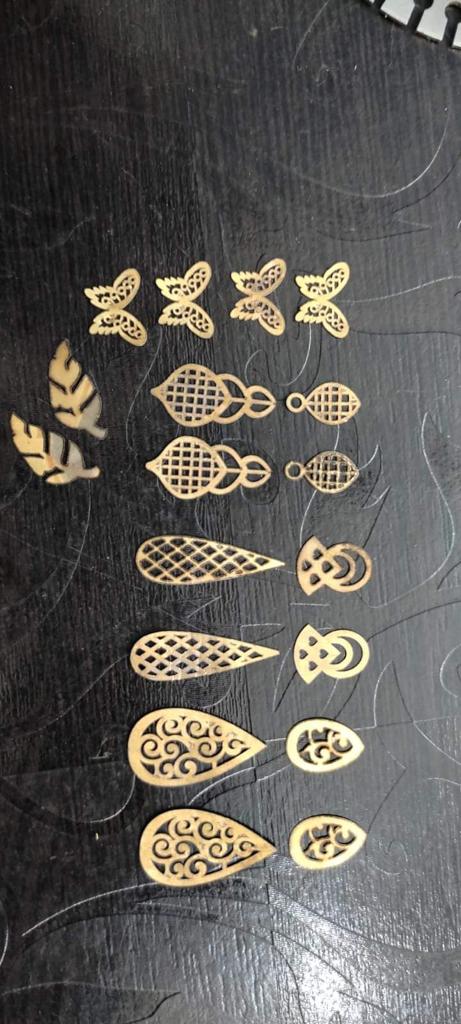

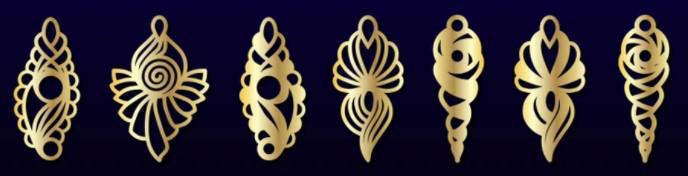

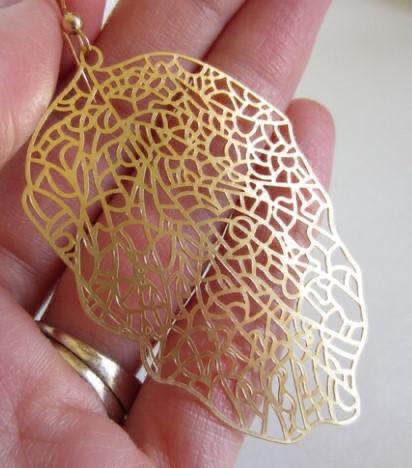

These are just sample designs. Any type of cutting of any design can be done on any metal sheet.
