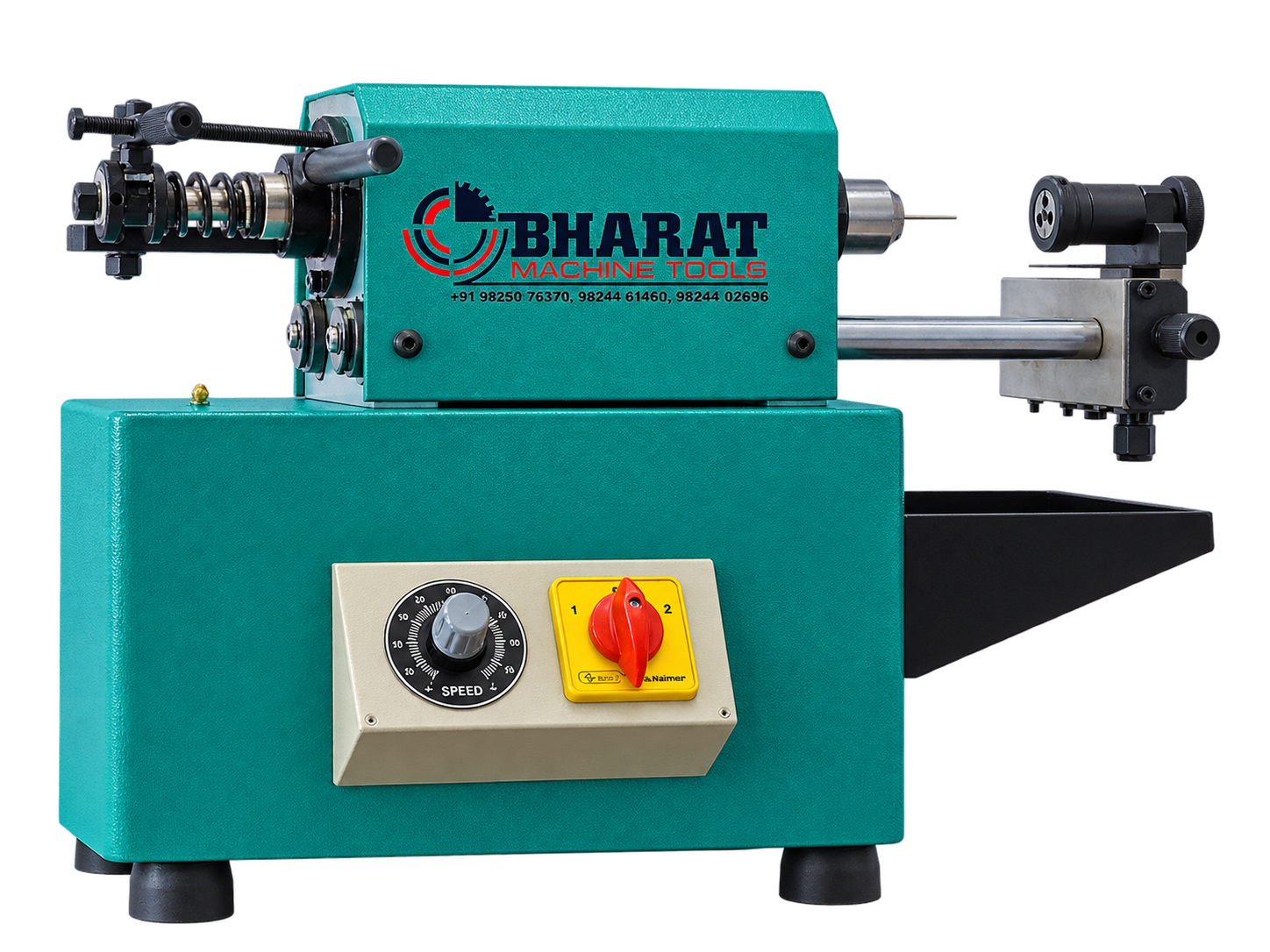

JEWELLERY HALF THREADING MACHINE
Machine specification:

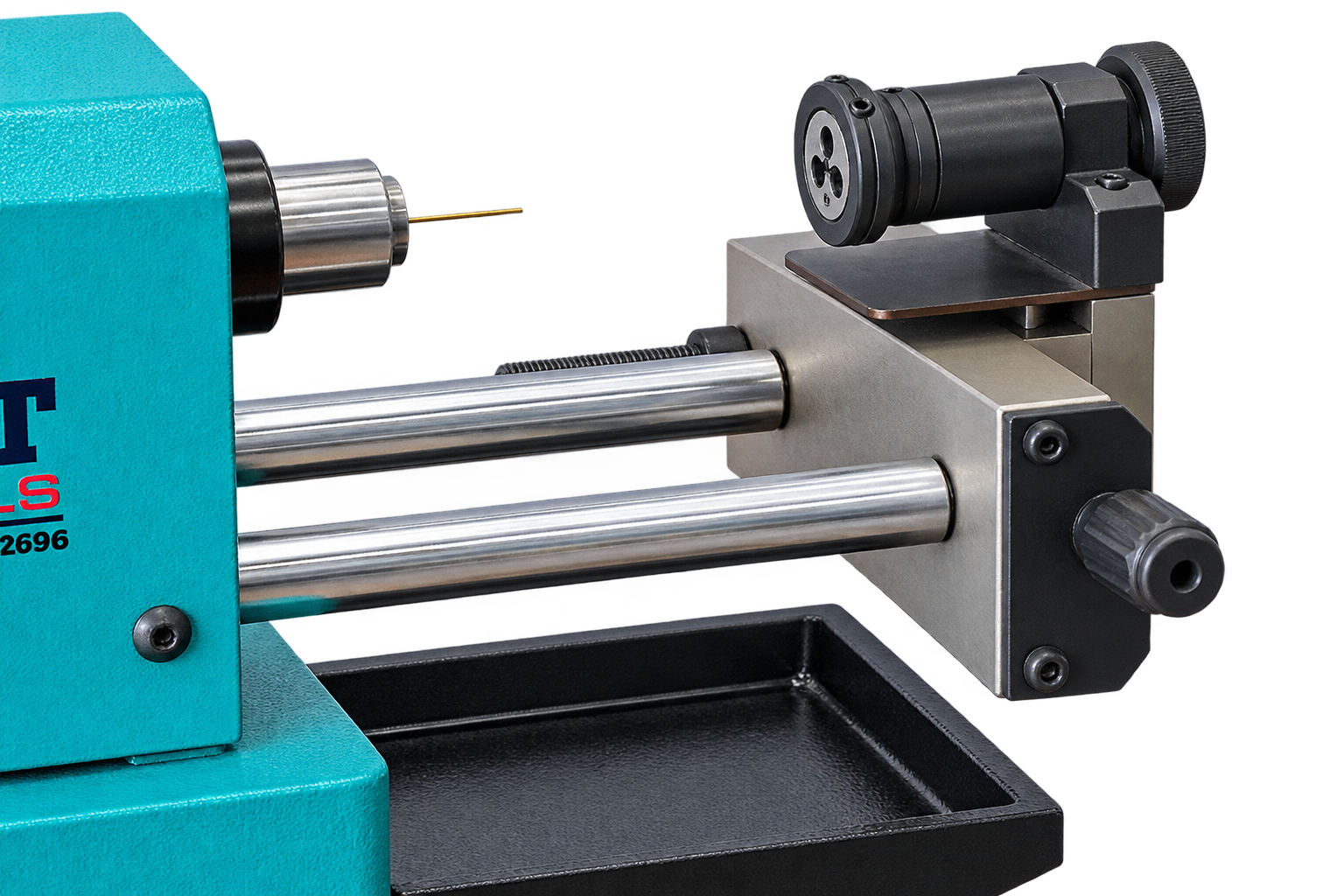

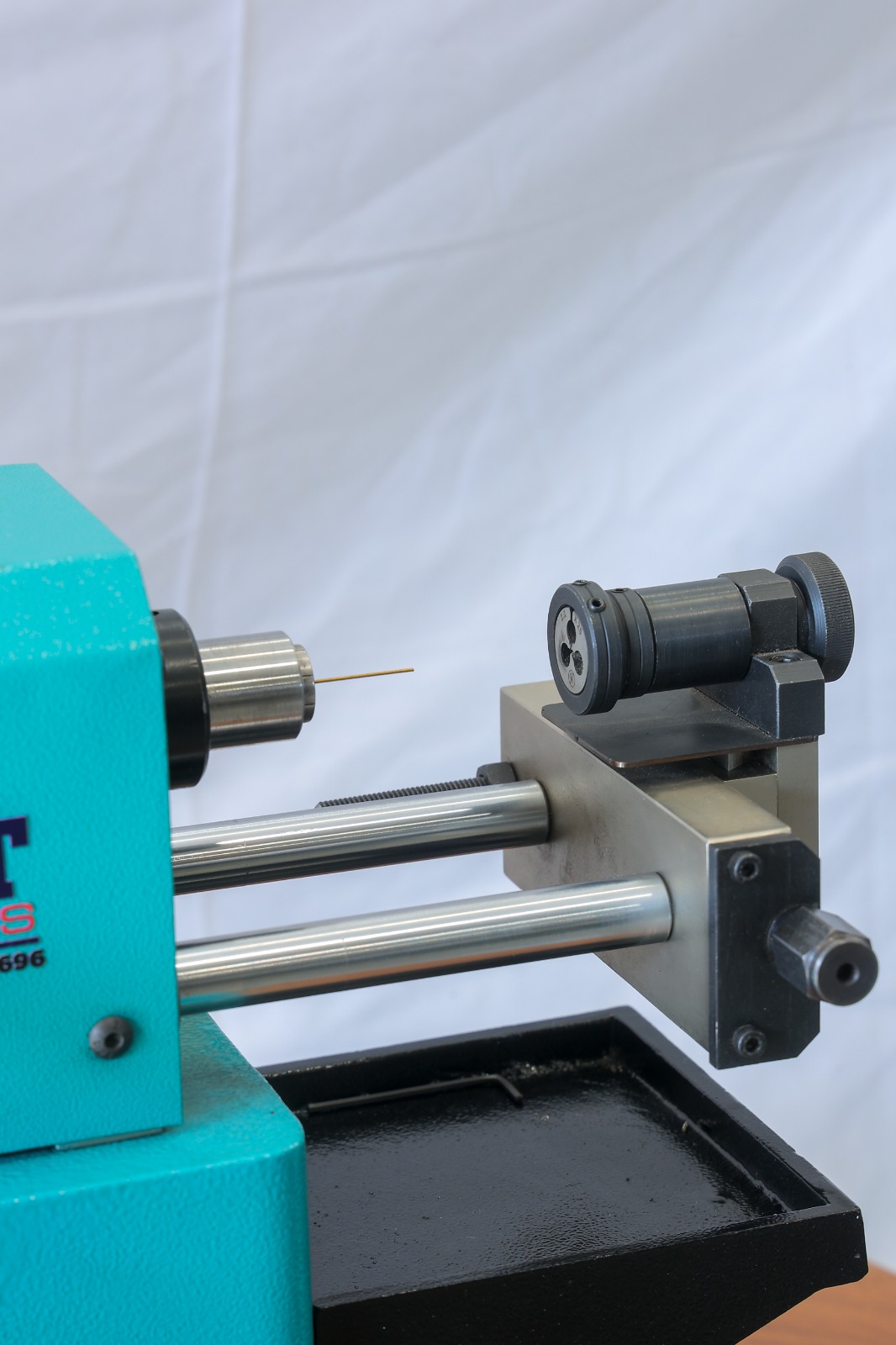

Half Threading Machine for jewellery is used for doing threading on small wire of minimum 0.8 mm diameter. Specific threading dies are used to do threading. Only part of small wire is threaded and rest is left blank according to bolt adjustment in the machine. You can decide how much wire you want to get threaded by losening or tightening the slider bolt arrangement. For further details about the machine please see the video or call Bharat Machine Tools at +91 9824201260.
| Wire diameter range | Minimum 0.8 |
|---|---|
| Motory | Magnetic sensor motor 0.8 Hp |
| Power supply | 220V Single phase or 3 phase (Both Possible) |
| Threading location | On top of wire half thread |
| Threading direction | Both reverse and forward |
| Pitch decider | Threading Die |
| Threading pitch | 0.25 mm,0.3 mm,0.4, 0.6 mm,0.7 mm (Regular) |
| Wire material | Gold,Silver,Brass |
| Threading time per piece | 3-4 seconds |

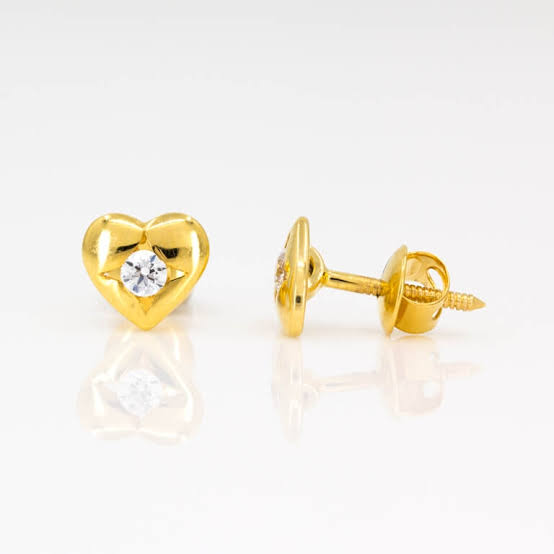

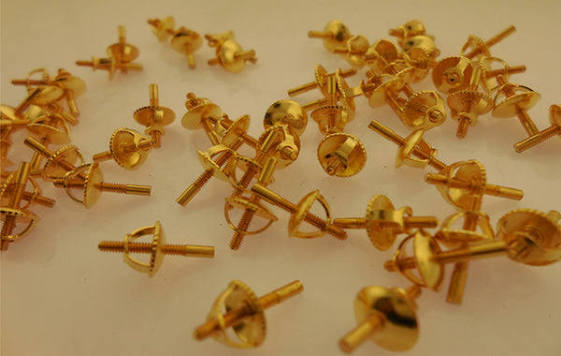

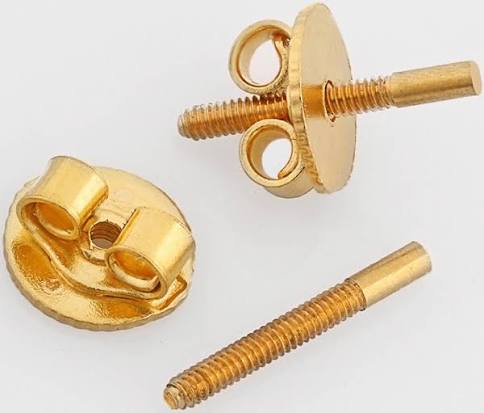

| Application | Bombay screw(kan bali) |
